RITAR EV Deep Cycle Traction Batteries – AGM
| MANUFACTURER | Product Code | Technical Specifications | Dimensions (mm) | Weight | Applications | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Voltage | Capacity | L | W | H | kg | |||||
| Ah/C5 | Ah/C20 | |||||||||
| EV 12-14 | 12V | 10.9 Ah | 14 Ah | 151 | 98 | 105 | 4.50 | Technical Data Sheet | Scooters |

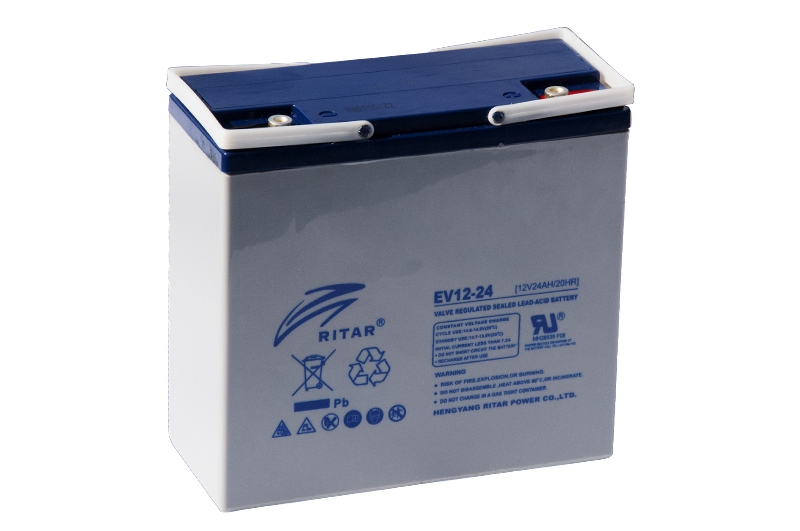

| EV 12-24 | 12V | 20.6 Ah | 24 Ah | 182.5 | 78.5 | 170 | 7.00 | Technical Data Sheet | ||
| EV 12-33 | 12V | 28.1 Ah | 35.4 Ah | 195 | 130 | 168 | 10.20 | Technical Data Sheet | Wheelchairs | |

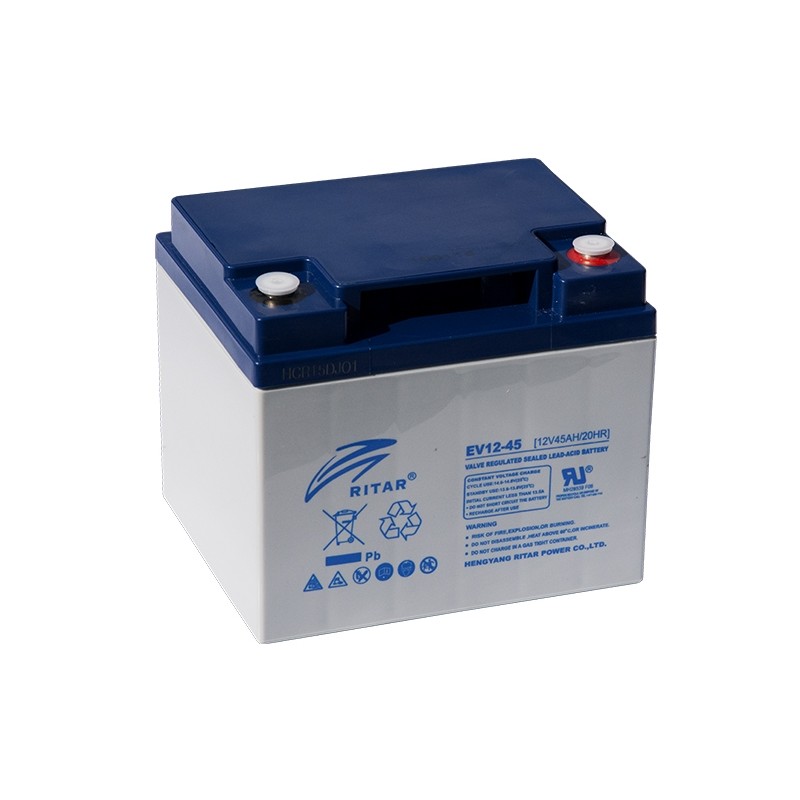

| EV 12-45 | 12V | 38.3 Ah | 48.2 Ah | 198 | 166 | 169 | 14.60 | Technical Data Sheet | ||
| EV 12-55 | 12V | 46.8 Ah | 58.8 Ah | 229 | 138 | 216 | 18.00 | Technical Data Sheet | ||
| EV 12-60 | 12V | 51 Ah | 64.2 Ah | 260 | 169 | 185 | 20.00 | Technical Data Sheet | Wheelchairs & Cleaning Machines | |
| EV 12-75 | 12V | 64 Ah | 80.4 Ah | 260 | 169 | 218 | 23.50 | Technical Data Sheet | ||

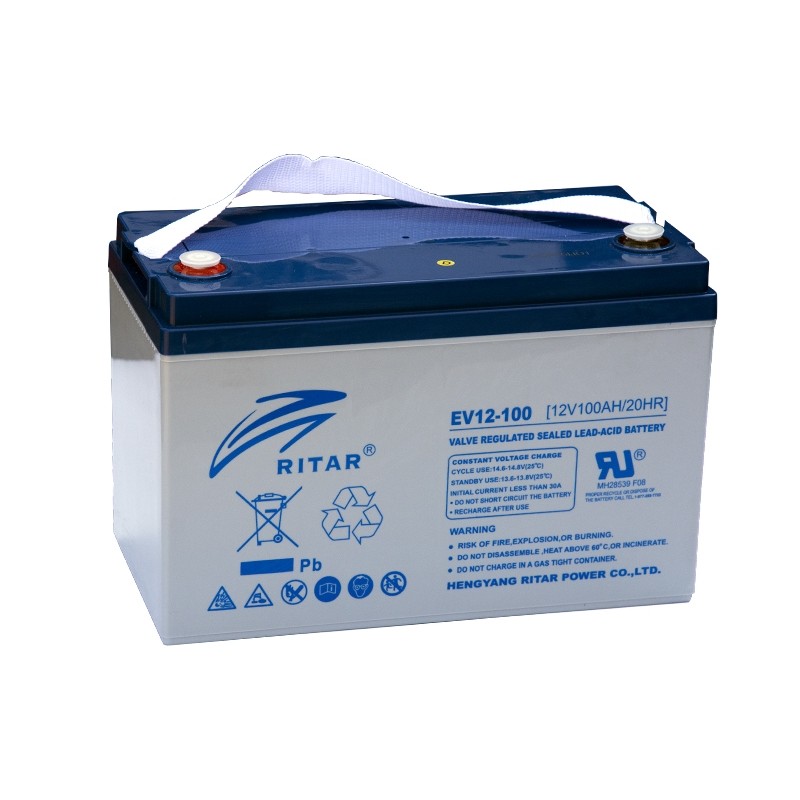

| EV 12-100 | 12V | 85 Ah | 100 Ah | 328 | 172 | 220 | 31.50 | Technical Data Sheet | Cleaning Machines | |
| EV 6-205 | 6V | 180.5 Ah | 206 Ah | 260 | 180 | 264 | 29.00 | Technical Data Sheet | ||
The battery construction is very solid, and the materials used offer performance and reliability in the most demanding situations.
AGM technology means that the batteries are sealed, do not emit toxic gases when charging, and require no maintenance.
Advantages:
- Maintenance-free batteries, no distilled water top-up required
- Better performance at high discharge currents / short time intervals
- Smaller dimensions
- Faster charging compared to classic lead-acid technology
- High safety level, electrolyte does not leak due to AGM technology
- Low self-discharge rate
- High resistance to shocks and vibrations
- Low sulfation (stratification) rate due to AGM technology
- Can be used in any position, it is a sealed battery, electrolyte does not leak
- Very low gas emissions (if not overcharged)
- High performance at low temperatures
Estimated lifespan:
- 700 cycles at 80% discharge
Applications:
- scooters
- wheelchairs

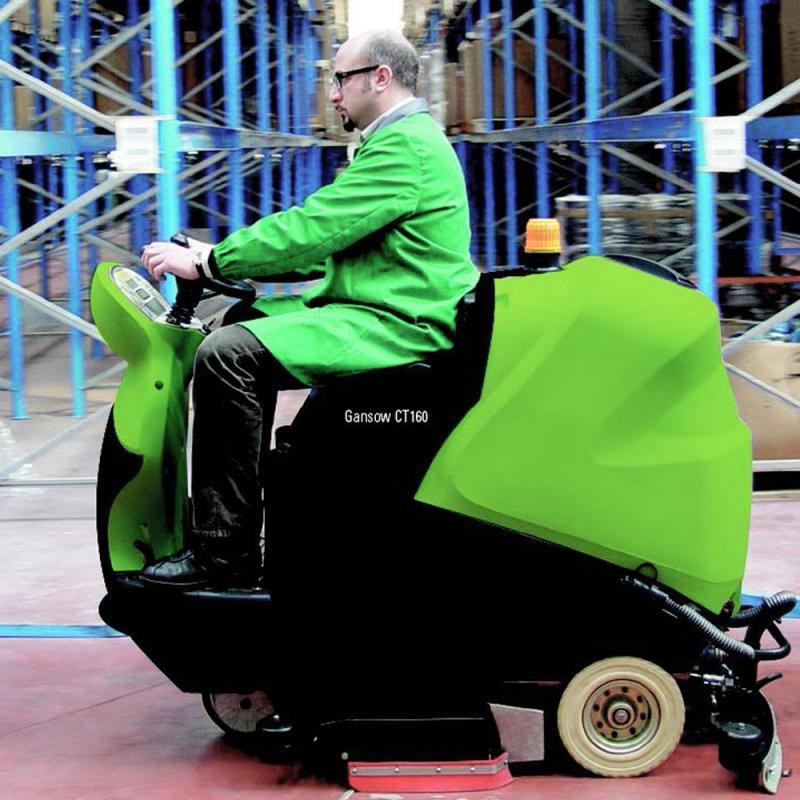

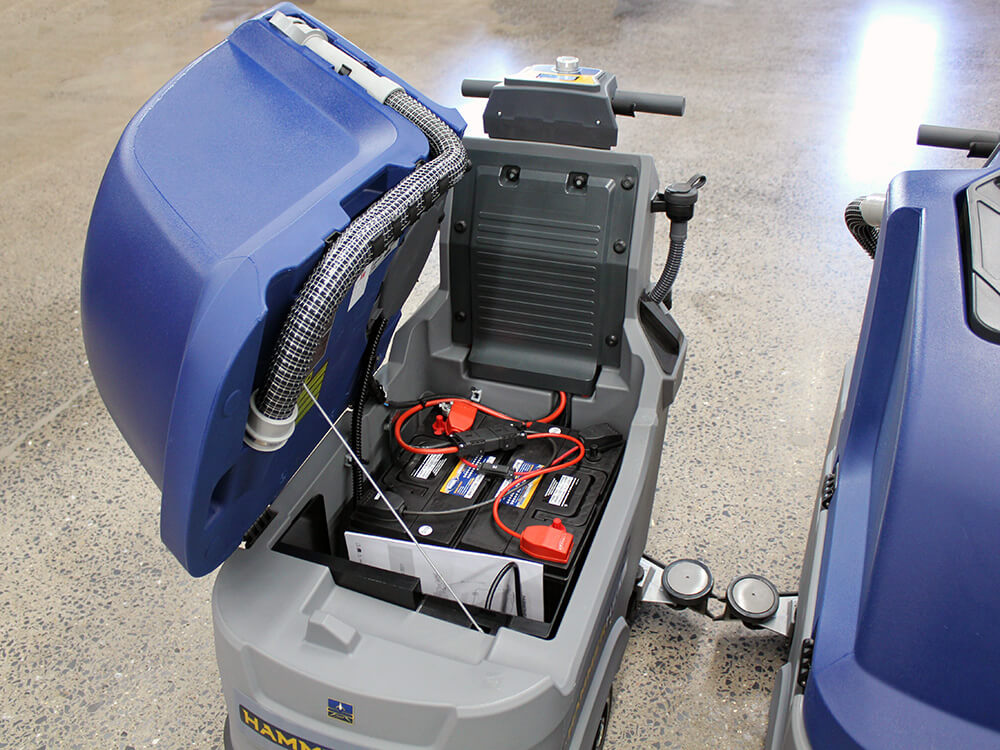

- floor cleaning machines
- golf carts
- forklifts
